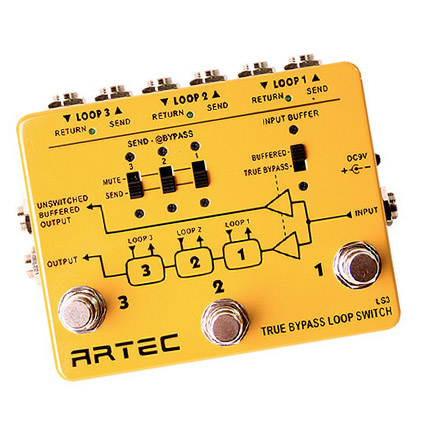

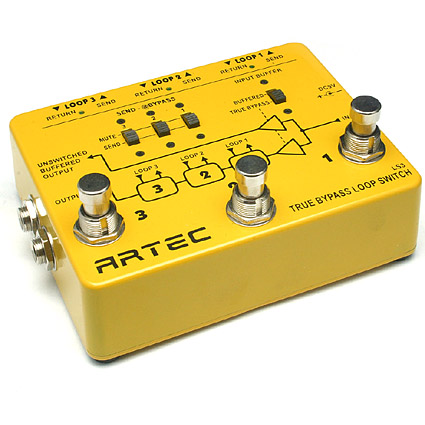

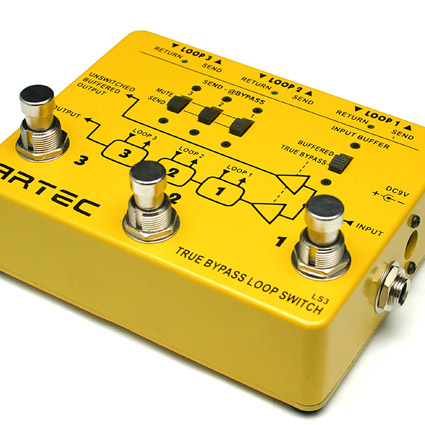

3 ch Loop Switch

LS3


Professional Loop Switch with Active buffer / Direct bypass selector



> Features

- 3 ch Loop switch
- ACTIVE BUFFER SELECT SWITCH
- Isolated BUFFERED OUTPUT for pedal tuner or extra systems
- AUTO-MUTE : When bypass, SEND is on MUTE status
- Professional Quality ZERO-LOSS signal switch
- No Battery Operation



> Technical Support

- User Manual
- Manufacturer's website

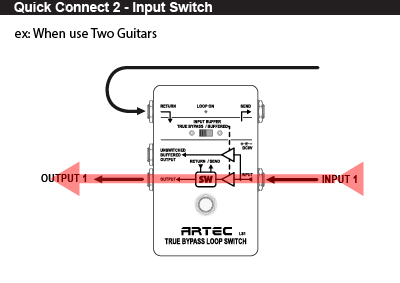

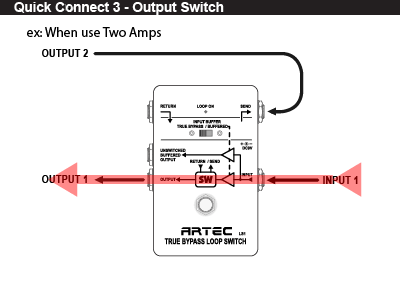

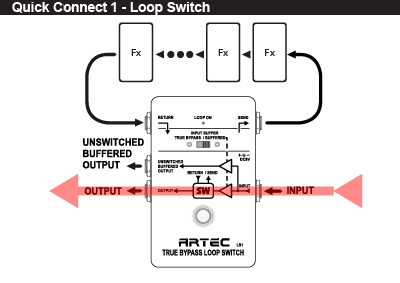

Basic Connctions (LS1 - single loop shwon), LS3 provides three individual channel of single-loop-switch
