Power Brick

SPB8

8ch Individual Regurated Power System

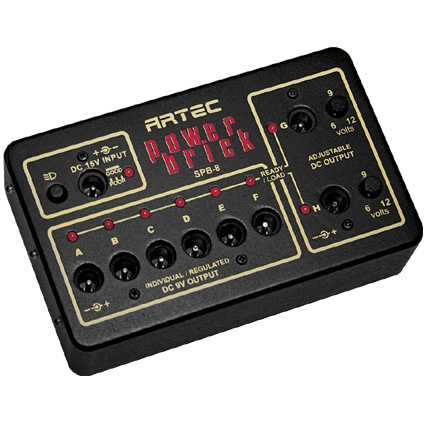

SPB-8 is individual regulated and individual hum filtered 8-channel power supply.

It has six channels of 9V- fixed voltage outputs, and two channels of adjustable voltage outputs (6V to 12V). This easy- portable unit includes AC adaptor for power supply. AC adaptor included (AC to DC).

> Features

- Six individual regutated and fixed voltage output (9V, 100mA)
- Two individual regurated and adjustable output (6V-12V, 100mA)
- Ready/Load indicator LED for each output channel
- Three blue bright LED lamp for board lighting

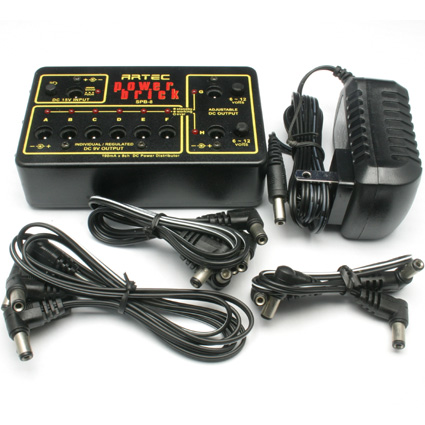

- AC adaptor included (SMPS, 15V 1A)

>Technical Specification

> Sound sample

- Power supply: 15V 1A
- Output:
    6ch of 9V fixed output (100mA each)
    2ch of adjustable output (6~12V, 100mA each)
- Dimension: 75.5(w) x 115.5(h) x 47.5(d) (mm)
- Weight: 280g

> Support

- User Manual
- Manufacturer's website
