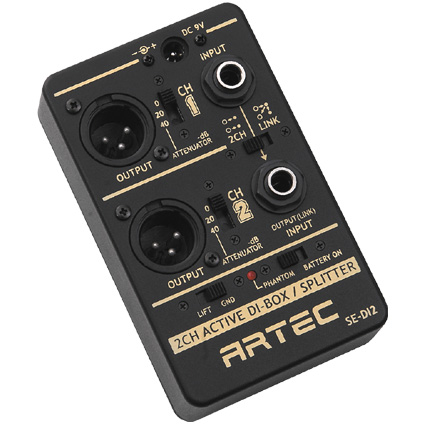

2ch Active DI Box

SE-DI2

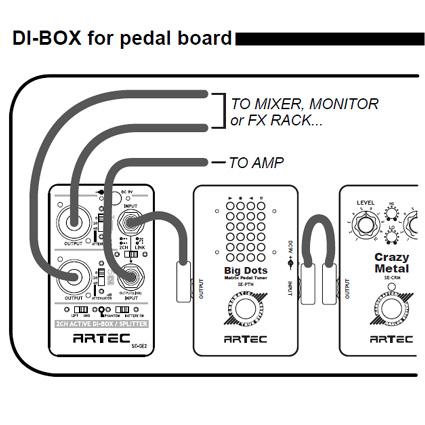

2ch Active Direct Box, Line Splitter for Effect Pedal Board

SE-DI2 has two individual channels of active direct interface.
This pedal can work with 9V battery or 48V phantom power from linked amp or console.

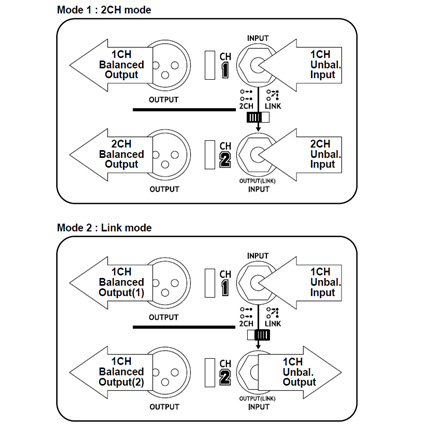

Link switch can select individual 2 ch mode or two balanced output link mode.
Each channel has gain attenuator switch.
Ground LIFT switch can isolate the ground level between amps or console. but phantom power not applied on ground lift mode.

> Features

- 2ch Active Direct Box, Line Splitter for Effect Pedal Board
- Cast alloy metal case
- 9V battery compartment
- DC 9V inlet

> Sound sample

> Technical Specification

- Current consumption : 1.5 mA
- Power requirement : DC 9V, Regulated
- Battery : 9V Alkaline Battery
- Extremely long battery life - VLPT

> Support

- User Manual
- Manufacturer's website
