Model

Position

Magnet

DCR
(kohm)

Output
mV

Option

S41

Neck / Middle

Ceramic

9.4

244

▆ Black

S42

Middle / Bridge

11.8

308

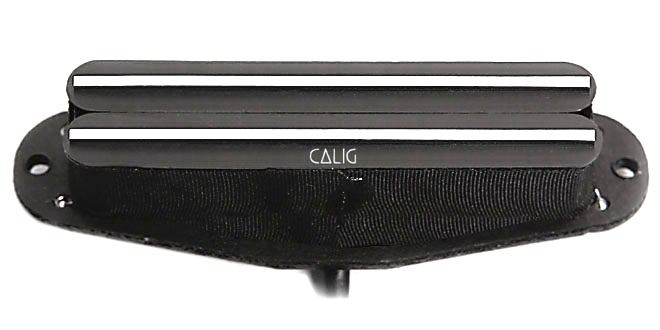

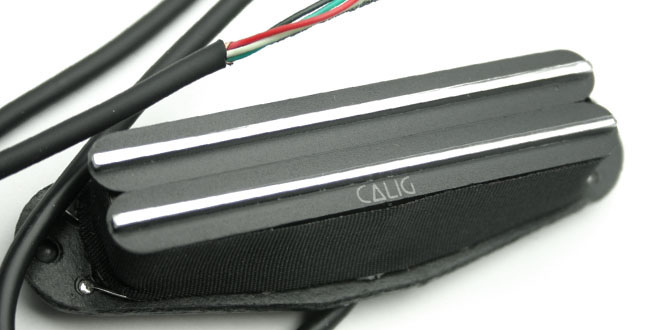

This is the Strat single pickup sized humbucker pickup.
It has the same side by side coil and blade structure.
Special ceramic magnet for pickup provides louder, puncher tone.
*This pickup can work with 250K pot but 500K pot is recommended if you built new circuit,

Flat Rail ST

S41, S42
Strat single sized humbucker


Common Features

  • Standard STRAT single size
  • Vacuum-wax potting processed

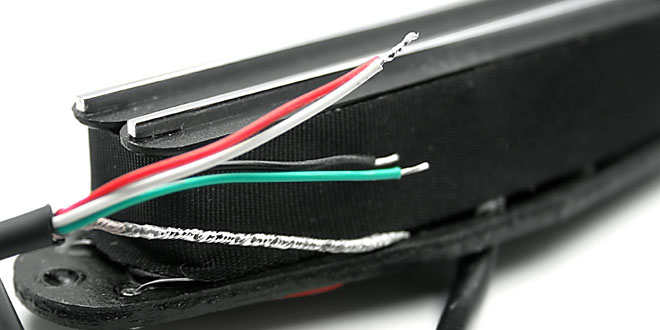

  • Wiring: 4 conductor / shield
  • Structure: Humbucker


Tone Characters
