Model

Position

Magnet

DCR
(kohm)

Output
mV

Option

S71

Neck

Ceramic

6.2

145

▆ Chrome

S72

Middle

6.8

158

S73

Bridge

6.5

150

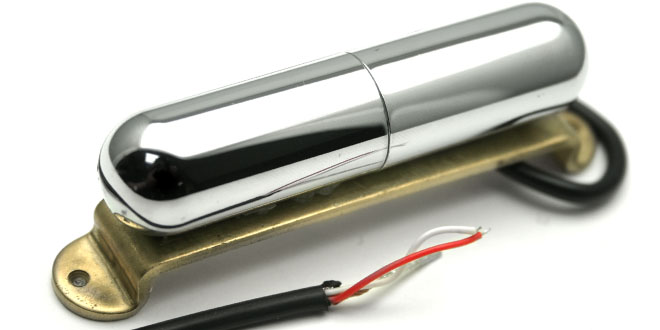

This is Llipstik pickup for STRAT replacement.
The strong ferrite 'CERAMIC 8' magnet makes high clarity and rich sound.
Same as standatd 3 single pickups wiring, S72 is reverse wound for middle position.

High Blues ST

S71, S72, S73  Lipstik


Common Features

  • Standard STRAT single size
  • Wiring: 1 conductor / Shield
  • Vacuum-wax potting processed
  • Structure: Single
  • Cover: ▆ Chrome


Tone Characters



Internal Wiring Diagram
