Model

Position

Type

Pitch
(mm)

Magnet

DCR
(kohm)

Output
mV

Option

T23

Neck

Single

50

AlNiCo 5

12.0

158

▆ Black

T24

Bridge

Hum Canceling

54

8.8

140





This is Hand Assembled Vintage Fiber Bobbin with AlNiCo5 Big Rods pickup series
T23 is one of the high out single pickup for telecaster® neck position.

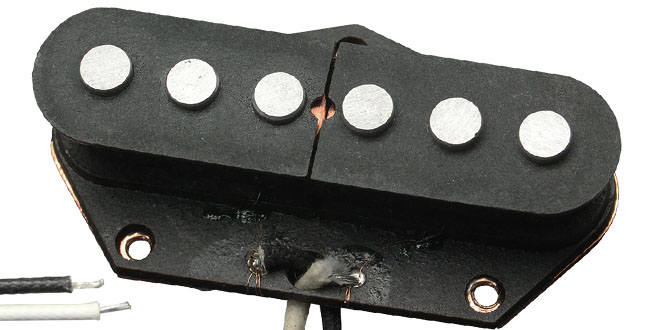

T24 makes clean and treble sound without hum noise.

V50 Tele I , II

T23, T24    BIG AlNiCo Rods


Common Features

  • Standard Tele Neck & Bridge size
  • Vacuum-wax potting processed

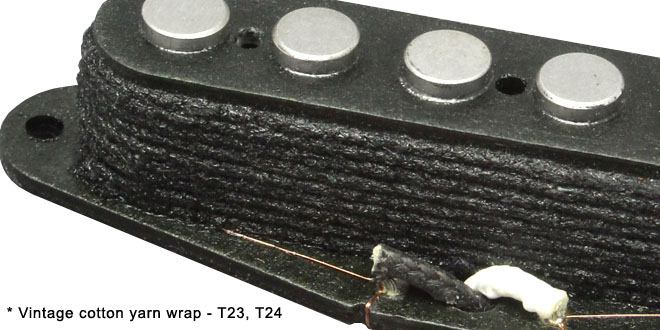

  • Vintage cotton yarn wrap
  • Wiring: 2 cloth wire
  • Magnet: AlNiCo 5, 6.5mm diameter rods


Tone Characters
